Hydraulic Cylinders
Custom Hydraulic Cylinders Manufacturer in India | HYDTI
Hydrotronics Industries (HYDTI) has been delivering precision-engineered hydraulic cylinders since 2005, supporting industries that demand power, accuracy, and long-term reliability. We manufacture a wide range of hydraulic cylinders from 1 ton to 2500 tons capacity, including single-acting, double-acting, tie-rod, welded body, telescopic, and lock-nut cylinders. Designed using advanced CAD software and built with CNC and VMC technology, our cylinders operate at pressures up to 10,000 psi with stroke lengths up to 6000 mm, ensuring superior performance even in the toughest industrial environments.
Get the best Hydraulic Cylinder tailored to your needs
Enquire TodayWhat Makes HYDTI Hydraulic Cylinders Different?
Comprehensive Range for Every Application
HYDTI manufactures a complete spectrum of hydraulic cylinders designed to meet diverse operational demands:
- Single-Acting Cylinders – Cost-effective solutions ideal for lifting applications where gravity or external force provides the return stroke.
- Double-Acting Cylinders – Precision-controlled extension and retraction for applications requiring force and accuracy in both directions.

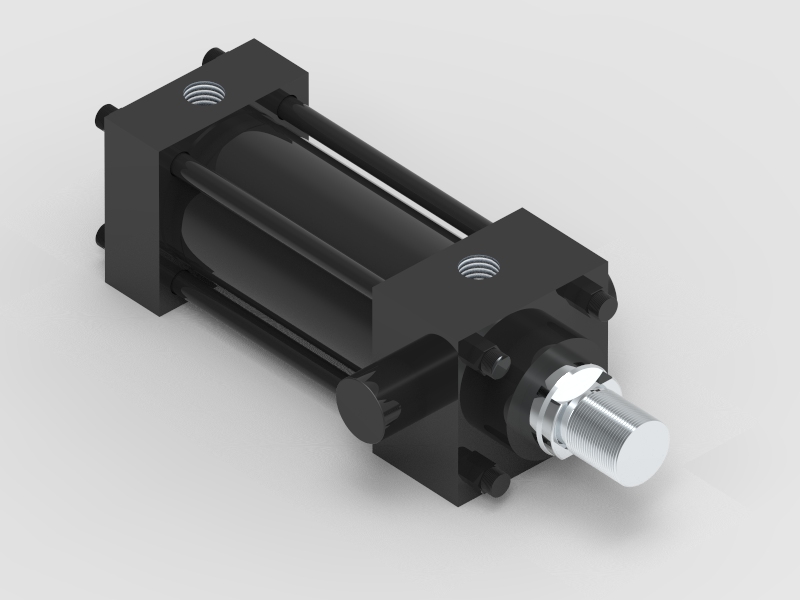

- Tie-Rod Mounting Cylinders – Modular, field-serviceable designs perfect for industrial settings requiring easy maintenance.

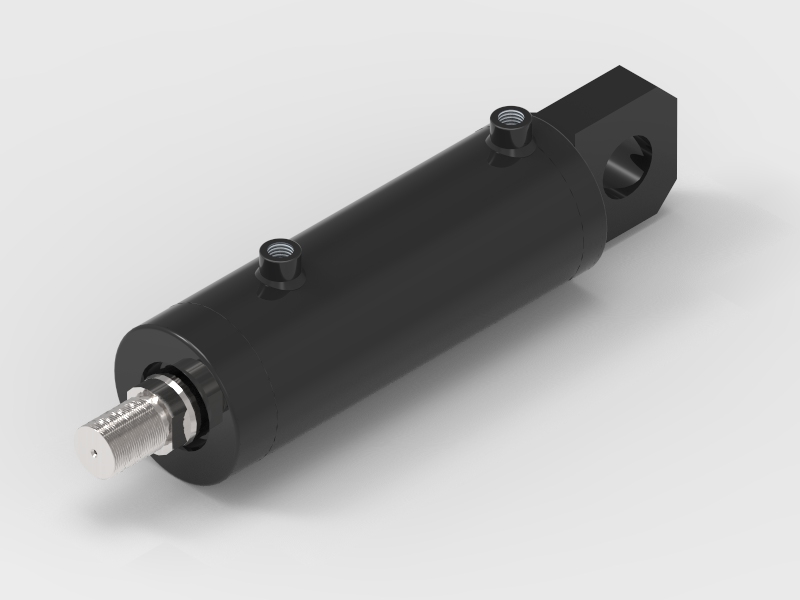

- Welded Body Cylinders – Robust, compact construction for mobile equipment and high-pressure applications.
- Double-Ended Cylinders – Dual rod ends for specialized push-pull applications.
- Mechanical Lock Nut Cylinders – For applications requiring secure position holding under load.
- Telescopic Cylinders – Extended stroke capability from a compact retracted length.
Industry-Leading Specifications
| Specification | Range | Application Advantage |
|---|---|---|
| Capacity | 1 Ton to 2500 Ton | From precision assembly to heavy industrial forming |
| Bore Size | 25 mm to 800 mm | Tailored force output for your specific needs |
| Stroke Length | Up to 4000 mm | Extended reach without com‐promising structural integrity |
| Working Pressure | Up to 6000 psi (414 bar) | High-pressure performance for demanding applications |
Industries Served and Applications
- Construction and Mining Equipment
- Manufacturing and Industrial Automation
- Agriculture Machinery
- Material Handling Systems
- Steel Mills and Process Plants
- Capital Equipment Manufacturing
- Marine and Offshore Applications
How to order:
| HI | 28 | 100 | 70 | 250 | K | NC |
|---|---|---|---|---|---|---|
| Cylinder Type | Model No. | Bore Size | Rod Size | Stroke Length | Seal Type | Cushioning |
| HI – Special Cylinder | 1 | 25 | 12 | User defined | N – Standard Seal | HC – Head End Cushioning |
| ISO – ISO Cylinder | 2 | 32 | 14 | V – Viton seal | CC – Cap End Cushioning | |
| M – Micro Cylinder | 3 | 40 | 18 | (High Temperature) | BC – Both End Cushioning | |
| B – Block Cylinder | . | . | . | NC – No | ||
| LN – Lock Nut Cylinder | . | . | . | |||
| P – Pullback Cylinder | . | . | . | |||
| J – Jack Cylinder | 45 | 420 | 110 |
